TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes）

1
MOQ
TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes）
Features Gallery Product Description Request A Quote
Features
Specifications
Application: LED Backlight Strip Fixation Dispensing For TV Backplates
Applicable Panel Size: 32–55 Inch
Dispensing Method: Spot Dispensing, Dual-track Dispensing
Positioning Accuracy: ±0.1 Mm
Cycle Time (Takt Time): ≤ 18 S / Pcs (6-strip Configuration)
Operation Mode: Manual Loading / Manual Unloading
Operating Area Height: 850 ± 50 Mm (adjustable)
Overall Dimensions (L × W × H): 3400 × 7400 × 2400 Mm
Power Supply: AC 220 V / 50 Hz
Air Supply: 0.6 MPa
Machine Weight: Approx. 2000 Kg
Basic Infomation
Place of Origin: China
Brand Name: Large-auto
Model Number: SLBDJ-0400S
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description

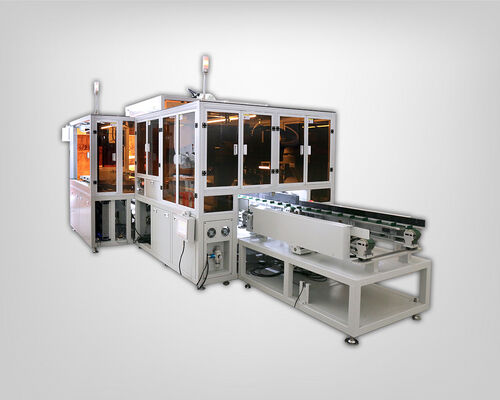

TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine
Product Overview
This system is designed for adhesive dispensing and fixation of LED backlight strips in TV backplate assembly processes.
By integrating robotic pick-and-place handling with high-precision dispensing valves, the machine ensures accurate glue placement, stable bonding, and high production efficiency for large-size TV panels.

Product Highlights
  • Robotic Arm Pick-and-Place
  • TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes） 0
    Automated handling of TV backplates improves consistency and reduces manual intervention.
  • High-Precision Adhesive Dispensing
  • TV Assembly Line – LED Backlight Strip Fixation Dispensing Machine（Dispensing equipmen ensuring uniform glue volume and accurate positioning for tv led backlight module assembly processes） 1
    Equipped with precision dispensing valves to ensure uniform glue volume and accurate positioning.
  • Wide Panel Compatibility
    Supports TV backplates from 32 to 55 inches, suitable for multiple product platforms.
  • Vision-Assisted Positioning
    High-accuracy positioning system ensures precise alignment of LED backlight strips.
  • Stable & Reliable Performance
    Designed for continuous operation in mass production TV assembly lines.
  • Production Line Integration Ready
    Compatible with standard conveyor systems for easy integration into existing TV assembly lines.
  • Typical Applications
  • TV LED backlight module assembly
  • TV backplate adhesive fixation
  • Large-size display production lines
