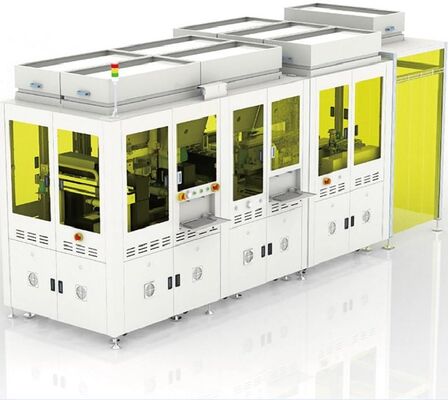

Single-Station, Single-Channel AR Multi-Layer Lamination System--AR/Display Glass Precision Stacking Equipment

1
MOQ
Single-Station, Single-Channel AR Multi-Layer Lamination System--AR/Display Glass Precision Stacking Equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Lamination Layers: 2–4 Layers
Machine Dimensions: L 5200 × W 2200 × H 2500 Mm
Lamination Type: Frame Lamination
Product Size: 35 × 40 Mm To 60 × 80 Mm
Loading / Unloading: Automatic
Infeed Fixture: Tray
Production Capacity: Single Station: ≥ 70 Pcs/hour (2-layer)
Outfeed Fixture: Tray
Thickness Uniformity: Equipment Lamination Accuracy ≤ 6 μm
Alignment Accuracy: Wheel Alignment: ±50 μm; Mark Alignment: ±30 μm
Glass Thickness: 0.3 – 1.0 Mm
Spot Alignment Accuracy: 0.65 – 1.2 μm (dependent On Image Magnification)
CCD Resolution: 20 MP (optional)
Cleanroom Class: Class 100
Basic Infomation
Place of Origin: China
Brand Name: Large Auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description

Product Overview


The Single-Station, Single-Channel AR Multi-Layer Lamination System is designed for high-precision lamination of AR optical components. Supporting 2–4 layer lamination, the system delivers stable alignment accuracy and excellent thickness uniformity. Its automated operation and cleanroom-compatible design make it ideal for modern optical manufacturing environments.



Applications


AR lenses, optical glass components, and multi-layer laminated products requiring high precision and consistency.



If you have any questions about this equipment, please feel free to contact Xiamen Large Automation Technology Co., Ltd. to discuss system configurations, integration options, and customized solutions.
