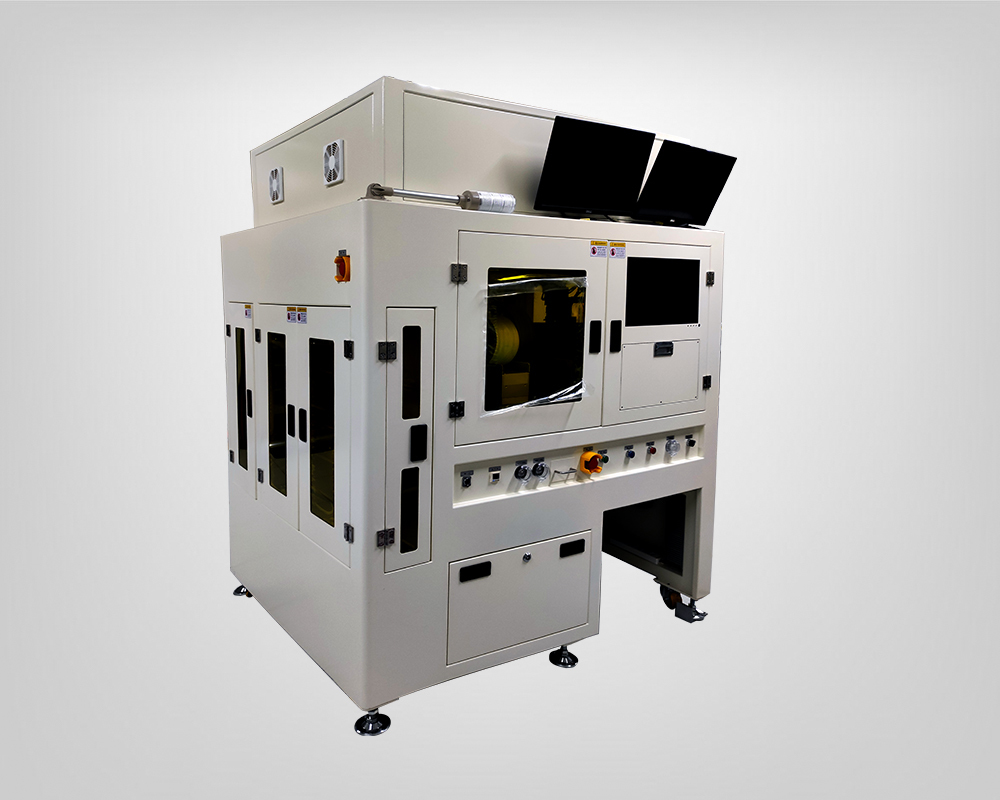

Automatic Laser Marking Machine

1. Equipment Description

This machine is designed for high-precision laser marking of barcodes, QR codes, and characters on various materials.
It features a fully enclosed structure with integrated vision positioning, ensuring stable marking quality and safe operation.

The system supports automated operation and is suitable for inline or standalone use in industrial production environments.

2. Key Advantages

Wide Application Range

• Suitable for marking sizes from 3 mm to 12.9 mm

• Compatible with various materials and product types

Correctable & Re-Markable

• Supports marking content correction and re-marking

• Suitable for production lines requiring traceability and data update

High Precision

• Vision positioning accuracy: ±0.03 mm

• Repeated positioning accuracy: ±0.01 mm

• Marking repeatability: ±0.05 mm

High Speed

• High-efficiency laser marking system

• Typical marking speed: up to 3200 pcs/hour

Full Vision Recognition

• Integrated CCD vision system

• Automatic recognition and positioning of marking areas

• Ensures accurate alignment and consistent marking quality

3. Sample Marking Results

• QR codes

• Data matrix codes

• Alphanumeric characters

(Examples shown are representative of actual marking results.)

4. Control & Automation

• PLC-based control system

• HMI touch panel operation

• Vision-assisted positioning and verification

• Recipe management and parameter storage

5. Safety & Compliance

• Fully enclosed laser safety structure

• Emergency stop and interlock protection

• Designed in accordance with industrial laser safety standards

6. Notes

• Specifications are subject to change without prior notice.

• Custom configurations are available upon request.
