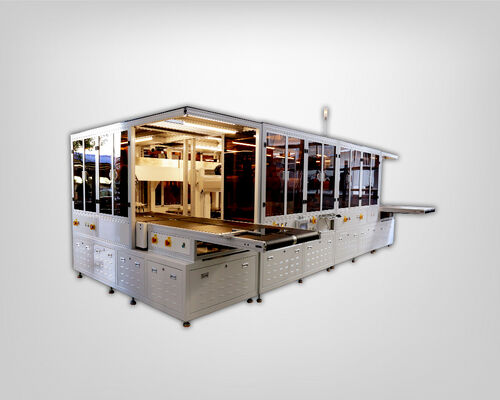

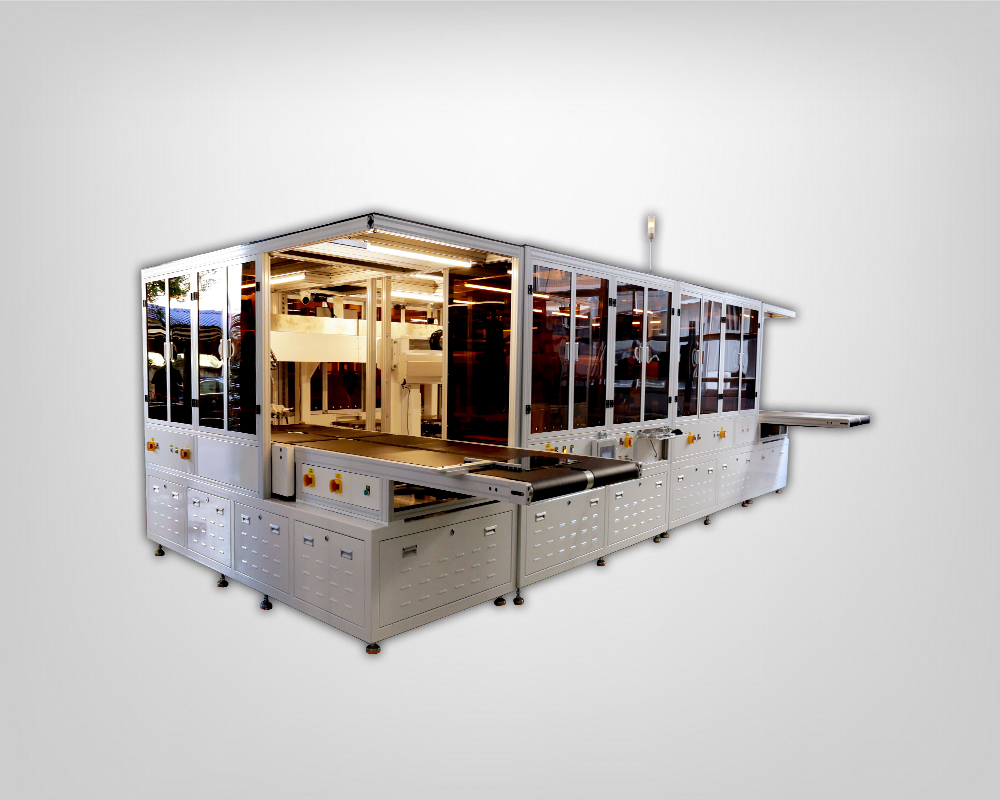

Monitor OC Side Edge Sealing Machine

1
MOQ
Monitor OC Side Edge Sealing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Overall Dimensions (L × W × H): 7020 × 4300 × 2400 Mm
Positioning Method: CCD Vision Alignment
Applicable Panel Size: 18–43 Inch
Sealing Thickness Accuracy: ±0.25–0.05 Mm
Sealing Position Accuracy: ±0.1 Mm
Sealing Method: Automatic OC Side Edge Adhesive Sealing
Curing Method: LED UV Curing
UV Light Source: LED UV Lamp, Wavelength 365 Nm
UV Irradiance: 3000 MW/cm²
Motion System: Servo Motor + Precision Linear Guide
Power Supply: AC 220 V / 50 Hz
Air Supply: CDA 0.5 MPa, 200 L/min
Equipment Yield Rate: > 99%
Basic Infomation
Place of Origin: China
Brand Name: Large-auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description
Product Overview
This machine is designed for OC side edge sealing processes in monitor display manufacturing.
It supports monitor panels ranging from 18 to 43 inches, providing precise adhesive sealing, stable edge protection, and high production efficiency.
With an inline automatic loading and unloading configuration, combined with high-precision vision alignment and a fully enclosed safety structure, the system is well suited for mass production of monitor display modules.
Product Highlights
  • Designed for Monitor OC Side Edge Sealing
    Optimized for OC edge sealing processes to enhance structural stability and reliability of monitor panels.
  • Inline Automatic Loading & Unloading
    Supports automatic panel transfer, significantly improving production efficiency.
  • High-Precision CCD Vision Alignment
    Ensures accurate sealing position and consistent adhesive paths.
  • Uniform & Stable Sealing Quality
    Precisely controlled dispensing and sealing parameters ensure consistent adhesive width and thickness.
  • Fully Enclosed Safety Design
    Multi-zone safety protection ensures stable operation and operator safety.
