Home /Products/Bonding equipment/TV OC Side Edge Sealing Machine

TV OC Side Edge Sealing Machine

1
MOQ
TV OC Side Edge Sealing Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Overall Dimensions (L × W × H): Approx. 14,000 × 6,500 × 2,000 Mm (subject To Final Design)
Positioning Method: CCD Vision Alignment
Applicable Panel Size: 43–75 Inch
Sealing Pressure Accuracy: ±0.25–0.1 Mm
Sealing Position Accuracy: ±0.1 Mm
Sealing Method: Automatic Side Edge Adhesive Sealing
Curing Method: LED UV Curing
UV Light Source: LED UV, Wavelength 365 Nm
UV Irradiance: ≥ 5,000 MW/cm²
Motion System: Servo Motor + Precision Linear Guides
Power Supply: AC 220 V / 50 Hz
Air Supply: CDA 0.5 MPa, 200 L/min
Equipment Yield Rate: > 99%
Basic Infomation
Place of Origin: China
Brand Name: Large-auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description
Product Overview

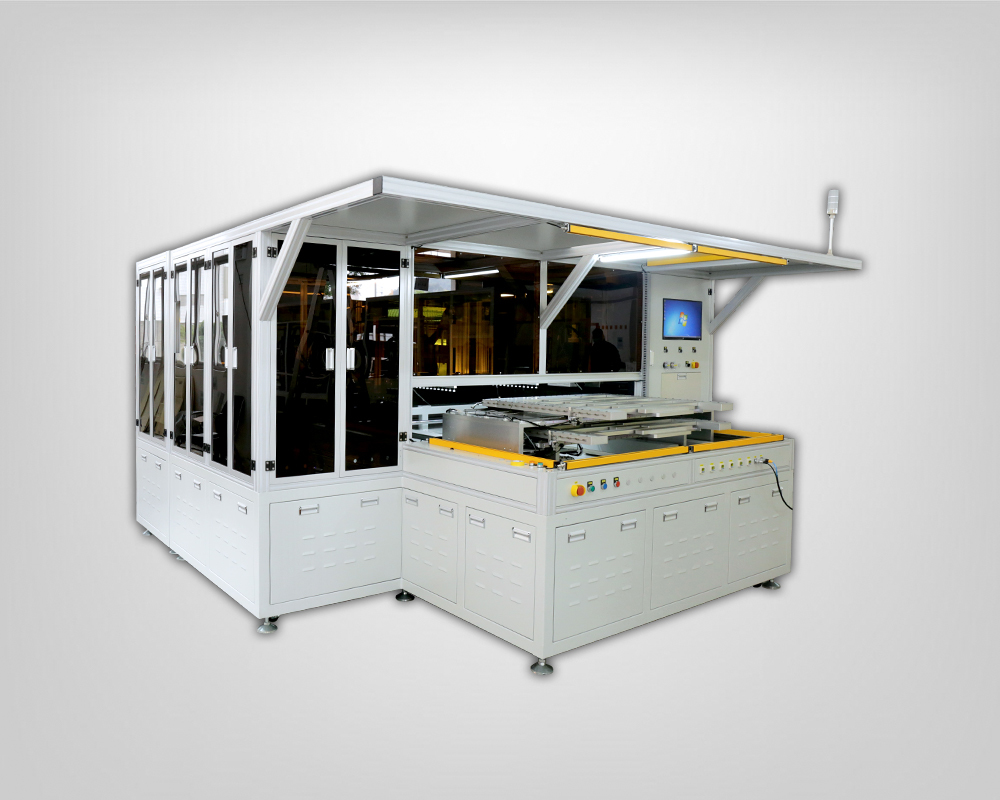

This machine is designed for OC side edge sealing processes in large-size TV display manufacturing.
It is suitable for TV panels ranging from 43 to 75 inches, providing precise adhesive application, stable sealing quality, and high production efficiency.
With an inline automatic loading and unloading structure and a fully enclosed safety design, the system is ideal for high-volume TV panel assembly lines.
Product Highlights
  • Designed for TV OC Side Edge Sealing
    Optimized for side edge sealing processes of large-size TV panels to enhance structural integrity and reliability.
  • Inline Automatic Loading & Unloading
    Supports automatic panel infeed and outfeed, significantly improving production efficiency.
  • High-Precision CCD Vision Alignment
    Ensures accurate positioning and consistent sealing paths along the panel edges.
  • Stable Sealing Quality
    Precisely controlled dispensing parameters ensure uniform adhesive width and thickness.
  • Fully Enclosed Safety Structure
    Provides enhanced operational safety and stable long-term performance.
