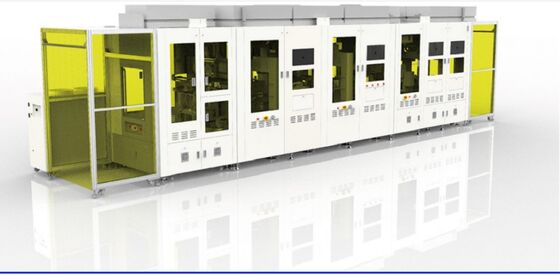

High-precision OCA curved multi-layer lamination system for optical and display manufacturing. Supports 2–7 layer OCA film lamination, flat and curved glass, ≤6 μm thickness uniformity.

1
MOQ
High-precision OCA curved multi-layer lamination system for optical and display manufacturing. Supports 2–7 layer OCA film lamination, flat and curved glass, ≤6 μm thickness uniformity.
Features Gallery Product Description Request A Quote
Features
Specifications
Lamination Layers: 2–7 Layers
Machine Dimensions: L 9500 × W 2200 × H 2450 Mm
Product Size: 30 × 40 Mm To 100 × 100 Mm
Lamination Type: OCA Lamination; OCA Full Lamination (flat & Curved Surfaces)
Loading / Unloading: Manual
Infeed Fixture: Dedicated Product Fixtures; OCA Lamination Loading
Lamination Pressure: 2–500 N ±1 N
Outfeed Fixture: Not Required
Thickness Uniformity: Equipment Lamination Accuracy ≤ 6 μm
Alignment Accuracy: Wheel Alignment: ±50 μm; Mark Alignment: ±30 μm
CCD System: 20 MP (optional)
Cleanroom Class: Class 100
Throughput (UPH): Single Station: ≥ 20 Pcs (three-layer Sample, Two OCA Sheets, Two Hardening Steps)
Basic Infomation
Place of Origin: China
Brand Name: Large-auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description
Product Overview

The OCA Curved Multi-Layer Lamination System is designed for high-precision lamination of flat and curved display components using OCA film. Supporting up to 2–7 layers, the system delivers stable alignment accuracy and excellent thickness uniformity, making it suitable for advanced optical and display manufacturing applications.

Key Features
  • Supports 2–7 layer OCA lamination
  • Compatible with flat and curved surfaces
  • High-precision alignment with vision assistance
  • Excellent thickness uniformity up to ≤ 6 μm
  • Stable lamination pressure control for consistent bonding
  • Cleanroom-compatible enclosed design
Typical Applications

Curved displays, optical modules, and multi-layer laminated products requiring high precision and high reliability.
