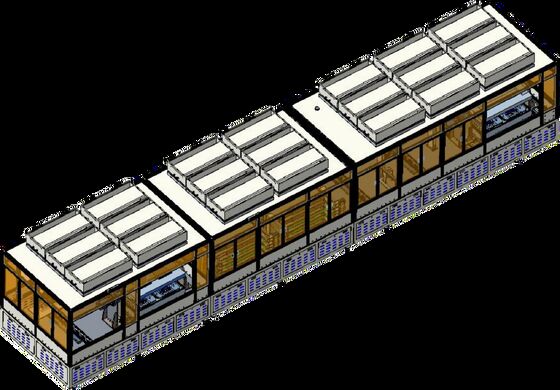

Central Control Screen OCA Full Lamination Production Line

1
MOQ
Central Control Screen OCA Full Lamination Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Surface Height: 950±50mm
Overall Dimensions: W 18,000 Mm × D 2,150 Mm × H 2,100 Mm (Excludes Chiller System, Vacuum Pump Dimensions, And Tower Light; Actual Dimensions Subject To Final Design)
UApplicable Product Size: Min. 150 × 80 Mm / Max. 400 × 250 Mm
Max. Dual-Panel Size: 900 × 400 Mm
Display Size Range: 7 – 17 Inch
Min. Gap (Dual Panel): ≥ 8 Mm
Alignment Accuracy: ± 0.1 Mm
Lamination Environment: Vacuum
Cycle Time: ≤ 30 S / Piece
Operation Mode: Manual Loading & Unloading
Chamber Vacuum Level: ≤ –100 KPa
Power Supply: AC 380 V / 50 Hz
Air Supply: 0.4 – 0.6 MPa
Basic Infomation
Place of Origin: China
Brand Name: Large-auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description
Product Features:

This machine is suitable for vacuum lamination and automatic bubble removal processes.

Notes

Specifications are subject to change without prior notice.

Line layout and process configuration can be customized according to customer product requirements.
