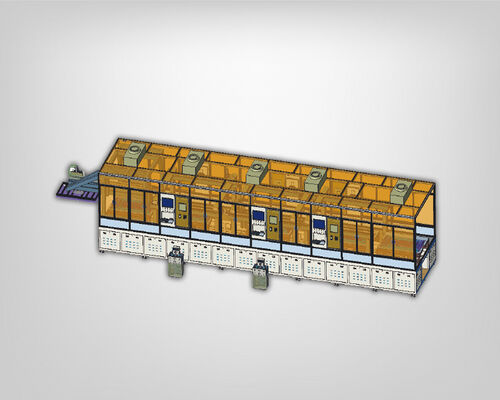

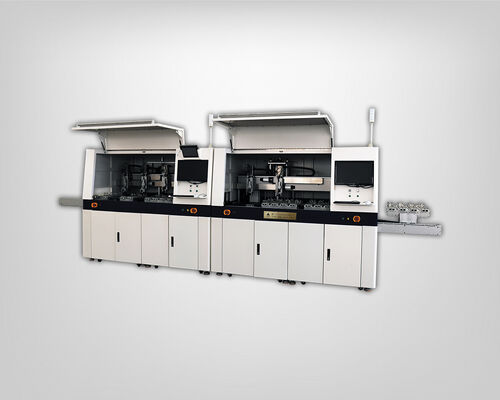

Inline LCM Multi-Point Dispensing and Inspection Production Line (5-in-1 / 3-in-1 Configuration)

Inline LCM Multi-Point Dispensing and Inspection Production Line (5-in-1 / 3-in-1 Configuration) Chinese custom automation manufacturer

1. Equipment Description

This production line is designed for inline multi-point adhesive dispensing and inspection of LCM products.
It is suitable for various product forms, including curved displays, flat displays, PCB boards, touch panels, and display modules.

The system integrates adhesive dispensing, curing, AOI inspection, and NG sorting into a single inline process, enabling efficient and stable automated production.

2. Product Features

• Integrated multi-point dispensing process completed in a single cycle
• Supports single-sided and double-sided dispensing
• Automatic adhesive curing (UV curing supported)
• Inline AOI visual inspection to ensure dispensing quality
• Automatic NG product identification and sorting
• Compact inline structure for efficient production flow

3. Process Configuration

• Automatic loading
• Multi-point adhesive dispensing
• Adhesive curing
• AOI visual inspection
• NG product sorting and unloading

4. Control & Automation

• PLC-based centralized control system
• HMI touch panel operation
• Recipe management and parameter storage
• AOI inspection result feedback and interlock control

5. Safety & Design

• Enclosed safety structure
• Emergency stop and interlock protection
• Designed for continuous industrial operation

6. Notes

Specifications are subject to change without prior notice.

System configuration (5-in-1 / 3-in-1) can be customized based on customer process requirements.
