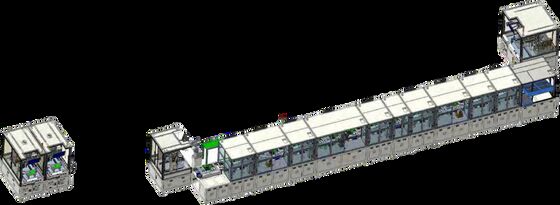

Domain Controller Assembly Line 1/2

1
MOQ
Domain Controller Assembly Line 1/2
Features Gallery Product Description Request A Quote
Features
Specifications
Operating Surface Height: 900±50mm
Overall Dimensions: Online Unit: W15300mm*D2500mm*H1900mm
Offline Automatic Labeling And Inspection Unit: Single Unit: W1700mm*D1500mm*H1900mm
Offline Conformal Coating Curing Unit: Single Unit: W1000mm*D1700mm*H1900mm
Tack Time: 60s
CMK≥1.67: ≥1.67
Equipment Operating Noise: ≤70db
Failure Rate: ≤1%
Operation Method: Manual Loading
Power Supply: AC380/50HZ
Air Supply: 0.4-0.6MPa
Basic Infomation
Place of Origin: China
Brand Name: Large Auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description

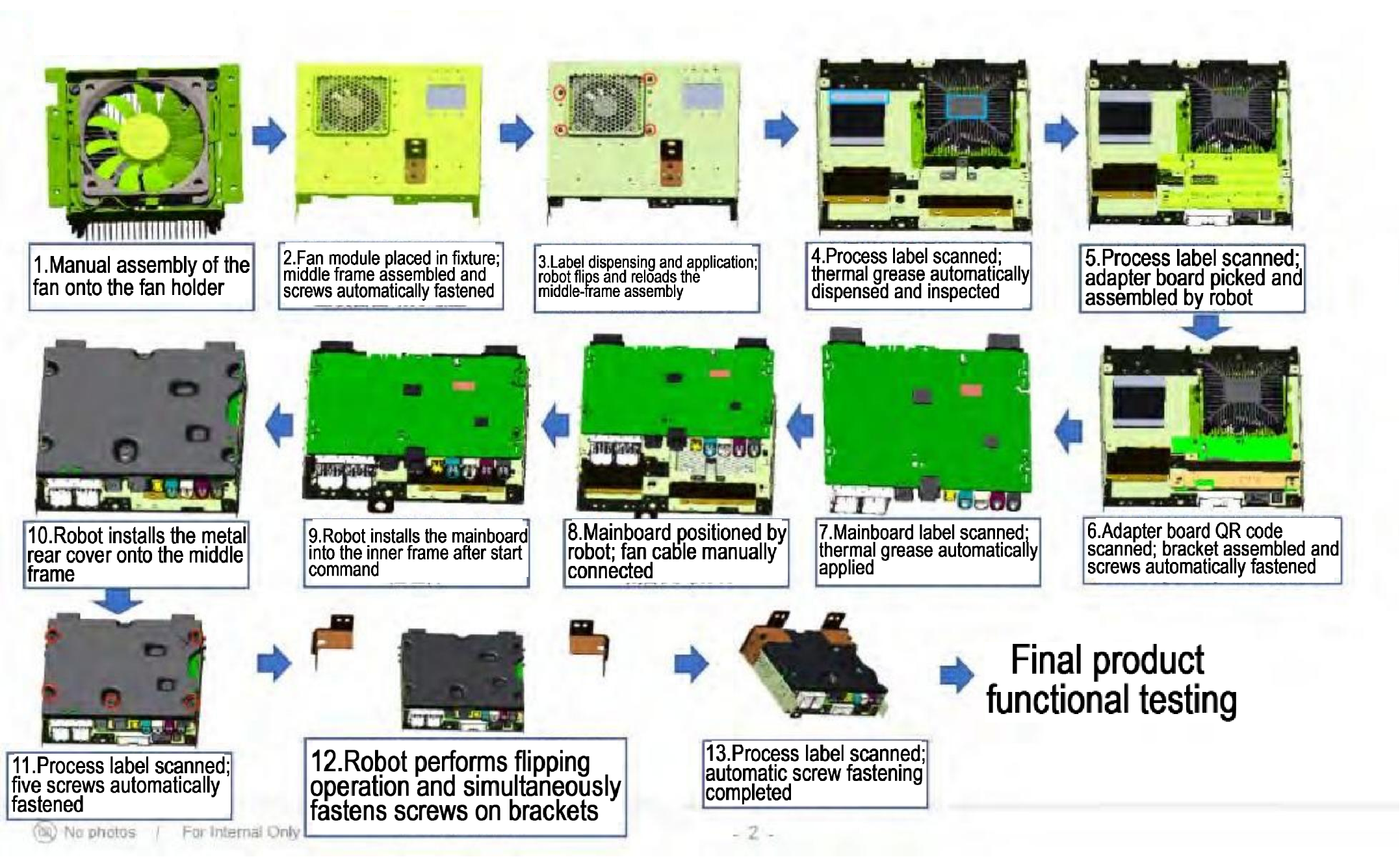

Suitable for domain controller assembly

• Employs a lifting assembly line transportation method
• Manual loading, fixture lifting and return
• Each workstation has a fixture lifting and positioning cylinder with positioning pins at the bottom to ensure
 accurate positioning during operation.
