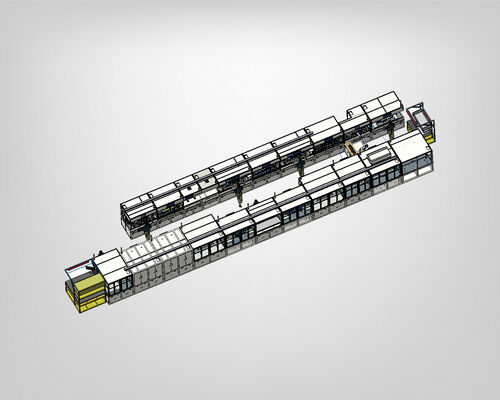

Automotive Center Display (Triple-Screen / Dual-Screen) Assembly and Testing Production Line

1. Equipment Description

This production line is designed for the assembly and testing of automotive center display systems, including dual-screen and triple-screen configurations.

The line supports PCB sub-assembly, screen assembly, front housing assembly, and AOI inspection processes.
It operates with a high level of automation and is suitable for stable, continuous production.

Manual operation is mainly limited to loading, while all subsequent processes are completed automatically to ensure consistent quality and positioning accuracy.

Each station is equipped with a dedicated positioning fixture and pneumatic positioning cylinder, ensuring precise and repeatable positioning during operation.

2. Key Features

• Designed for automotive center display modules (dual-screen / triple-screen)

• Integrated PCB sub-assembly and display assembly processes

• Front housing assembly with inline AOI inspection

• Conveyor-based automated transfer system

• High process stability and repeatability

• Suitable for automotive-grade production requirements

3. Process Configuration

• Manual loading

• PCB sub-assembly

• Display module assembly

• Front housing assembly

• AOI visual inspection

• Automatic transfer between stations

4. Control & Automation

• Centralized PLC control system

• HMI touch panel operation

• Automatic process sequencing and interlock control

• AOI-based visual inspection system

5. Safety & Design

• Fully enclosed safety structure

• Emergency stop and safety interlock system

• Designed in accordance with automotive manufacturing standards

6. Notes

• Specifications are subject to change without prior notice.

• Line layout and process configuration can be customized according to customer product requirements.
