Product Overview

The Benchtop Solder Ball Welding Machine is a compact, high-precision laser soldering solution designed for microelectronics and advanced component assembly. Equipped with a vision-guided three-axis motion system and a high-accuracy solder ball placement head, it delivers stable, repeatable, and precise solder ball welding performance.

This system supports flexible configuration and can be easily deployed as a standalone workstation or integrated into existing production lines.

Key Features

• Vision-Guided XYZ Motion System for precise positioning and alignment
• High-Precision Solder Ball Placement Head, compatible with solder ball diameters from 70 μm to 2 mm
• Integrated Alignment Camera for real-time visual correction
• Laser Welding Technology, compatible with imported IPG lasers and domestic laser sources
• Industrial PC Control System with intuitive operation interface
• Compact Benchtop Design, easy to move and suitable for flexible production layouts
• Optional Worktable and Fixtures for various product sizes and applications

Typical Applications

• Semiconductor packaging
• IC and chip-level solder ball attachment
• Sensor and microelectronic assembly
• Precision electronic components

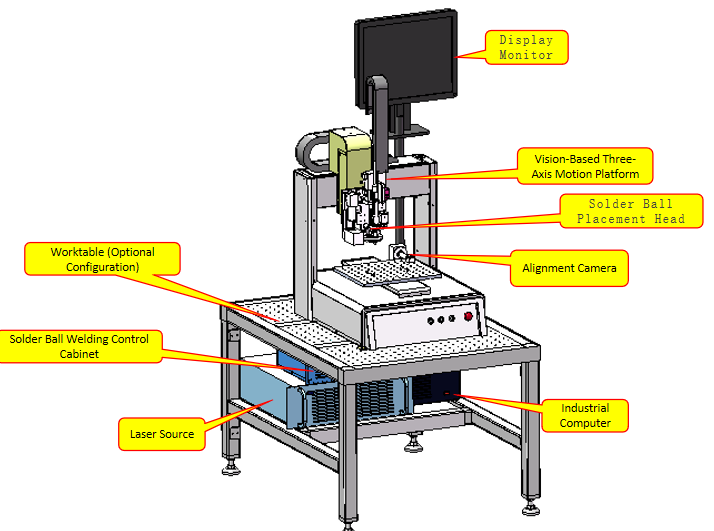

System Components

• Display Monitor
• Vision-Based Three-Axis Motion Platform
• Solder Ball Placement Head
• Alignment Camera
• Worktable (Optional)
• Welding Control Cabinet
• Laser Source
• Industrial Computer

Product Highlights (for quick scan)

• High accuracy
• Vision-assisted alignment
• Flexible laser configuration
• Compact benchtop footprint
• Suitable for R&D and mass production

FAQ – Benchtop Solder Ball Welding Machine (Vision-Guided Laser System)

1. What is a Benchtop Solder Ball Welding Machine used for?

A Benchtop Solder Ball Welding Machine is designed for precision laser welding of solder balls onto electronic components and micro-connectors. It ensures accurate positioning and reliable bonding for applications that require high-precision micro soldering.

2. How does the vision-guided laser system improve welding accuracy?

The vision-guided system uses high-resolution cameras and intelligent positioning algorithms to automatically identify welding points and guide the laser. This technology improves alignment accuracy, reduces positioning errors, and ensures consistent solder ball placement.

3. What industries use solder ball welding machines?

Solder ball welding equipment is widely used in semiconductor packaging, PCB assembly, micro-electronics manufacturing, sensor production, and precision electronic component assembly.

4. What are the advantages of using a laser solder ball welding machine?

Laser welding provides high precision, minimal thermal impact, stable solder joints, and improved production efficiency. It is ideal for delicate electronic components that require accurate and clean soldering processes.

5. Can the benchtop solder ball welding machine support different solder ball sizes?

Yes. The system can be configured to handle various solder ball diameters and welding parameters, allowing manufacturers to adapt the equipment to different product specifications and assembly requirements.

6. What are the benefits of a benchtop design for solder ball welding equipment?

The benchtop design provides a compact footprint, easy operation, and flexible deployment. It is ideal for R&D laboratories, prototype development, and small-batch precision manufacturing.
