Product Overview

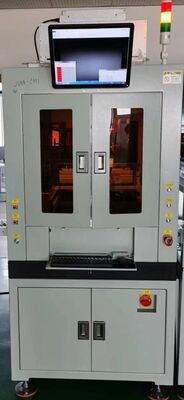

The Vertical Solder Ball Welding Machine is a fully enclosed, high-precision laser soldering system designed for automated solder ball attachment in advanced electronic manufacturing. With a vertical cabinet structure, integrated vision system, and in-line workflow capability, the machine ensures stable process control, high repeatability, and a clean operating environment.

The system is suitable for mass production scenarios requiring high reliability, safety, and consistency, such as semiconductor packaging and precision microelectronics assembly.

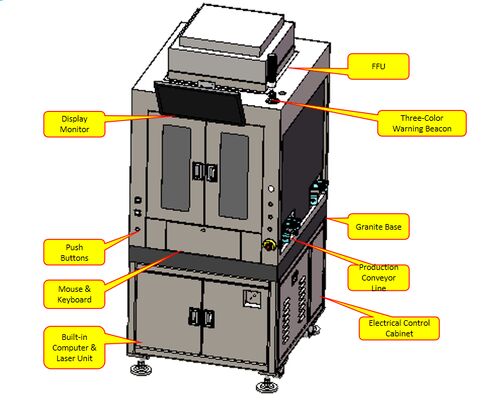

Key Features

• Vertical Enclosed Structure

          Full cabinet design improves safety, process stability, and environmental control.

• Vision-Guided Solder Ball Welding

          Integrated vision system enables accurate positioning and real-time alignment correction.

• Laser Soldering Technology

         Non-contact laser welding ensures precise energy control and consistent solder joint quality.

• FFU Clean Air Unit (Optional)

         Supports cleanroom-compatible operation and reduces particle contamination.

• In-Line Workflow Capability

         Designed to support production line integration for automated, continuous operation.

• Industrial Control System

          Built-in industrial PC with intuitive HMI for recipe management and process monitoring.

• Status Indicator Tower Light

         Three-color signal light provides real-time machine status indication.

Typical Applications

• Semiconductor packaging
• IC and chip-level solder ball attachment
• Microelectronics and sensor assembly
• Automated high-volume soldering production

Notes

System configuration, laser source, vision modules, automation interfaces, and specifications can be customized according to customer requirements. If you need to obtain detailed information, please contact Xiamen Large Automation Technology Co,.Ltd.
