Overview

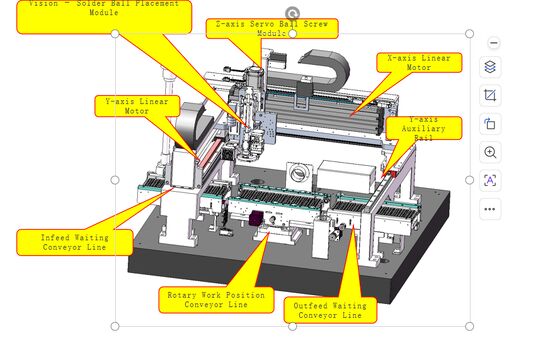

A highly precise automated soldering system designed for consistent solder ball welding on complex electronic assemblies. Equipped with a programmable rotary fixture and a tilt-capable welding head, this machine allows for multi-angle, multi-surface soldering without repositioning, ensuring uniform quality and throughput.

Key Features

• Rotary Welding Fixture – Enables 360° part rotation for complete four-side soldering access.

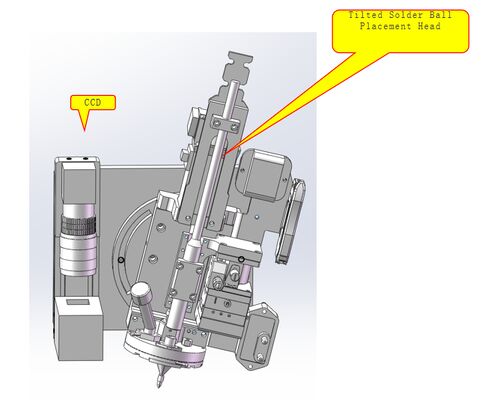

• Tilt-Adjustable Welding Head – Delivers precise solder application at programmable angles.
• CCD Vision Positioning – Ensures accurate component alignment before each welding operation.
• Servo-Controlled Linear Axes – Smooth and repeatable X/Y motion for flexible welding patterns.

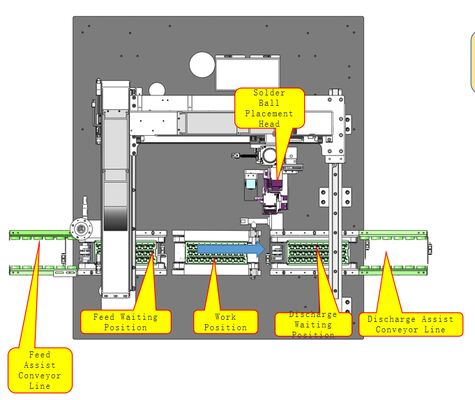

• Modular Conveyor System – Includes integrated feed, work, and discharge zones for continuous operation.
• Compact Single-Line Layout – Reduces floor space while maintaining full production capability.

Workflow

• The operator loads the fixture onto the feeding conveyor.

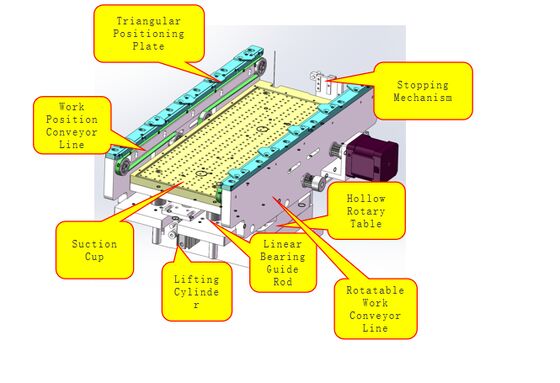

• The workpiece enters the rotary station, where it is lifted and rotated for soldering.
• The vision system aligns the welding head, which applies solder balls at the programmed tilt angles.
• Completed assemblies are conveyed to the discharge area for manual or automated offloading.

Benefits

• Multi-Angle Soldering Capability – Eliminates the need for manual repositioning or secondary processes.
• Enhanced Accuracy – Combines vision guidance and servo control for consistent weld placement.
• Optimized Footprint – Single-conveyor design fits seamlessly into existing production lines.
• Operational Flexibility – Suitable for both standalone operation and integrated semi-automated systems.

​Ideal for electronics manufacturers seeking a reliable, space-efficient, and precision-oriented solder ball welding system capable of handling complex multi-surface applications.For more details, please contact Xiamen Large Automation Technology Co,.Ltd. Main product:Modular conveyor system welding system,Intelligent Dispensing Equipment Manufacturer.
