Product Overview

The Dual X-Axis Dual Y-Axis Automatic Soldering Machine is a high-efficiency, dual-station soldering solution designed for precision electronic assembly. Featuring independent dual X/Y motion systems and an integrated CCD vision module, the machine enables simultaneous soldering and vision positioning, significantly improving throughput without compromising accuracy.

This configuration is ideal for applications requiring stable, repeatable solder joints and high productivity, especially in medium- to high-volume manufacturing environments.

Key Advantages

• Dual X / Dual Y Independent Motion

          Two fully independent X-axis and Y-axis systems allow parallel operation on two workstations.

• Simultaneous Soldering & Vision Alignment

          While one station performs CCD image capture and positioning, the other station continues soldering—no idle time.

• High Throughput Design

          Continuous operation of the soldering head maximizes equipment utilization and production efficiency.

• CCD Vision System

         Integrated industrial camera ensures precise positioning and consistent solder quality.

• Stable Mechanical Structure

        Rigid frame and precision linear modules ensure long-term accuracy and repeatability.

• Operator-Friendly Interface

        Industrial display with intuitive HMI for fast setup, programming, and monitoring.

Working Principle

• Station 1 Loading

          The operator loads the workpiece onto Workstation 1.

• Vision Positioning

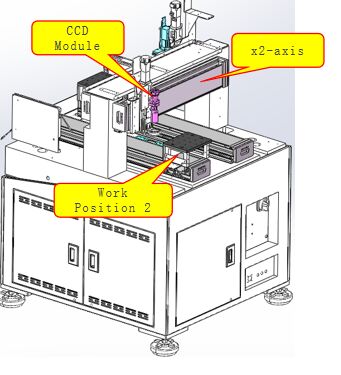

         The Y-axis moves the workpiece under the X2-axis camera for CCD image capture and alignment.

• Soldering Operation

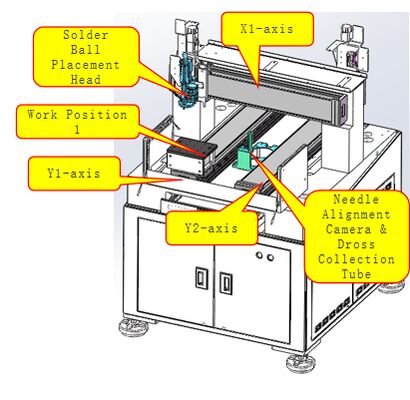

        After positioning, the system moves the workpiece to the X1-axis soldering area for soldering.

• Station 2 Parallel Operation

        While Station 1 is soldering, Station 2 simultaneously completes loading and vision alignment.

• Continuous Cycle

       Dual stations alternate seamlessly, achieving non-stop production.

Main Components

• Dual X-axis linear modules
• Dual Y-axis linear modules
• Precision soldering head
• CCD vision module
• Dual workstations (Station 1 & Station 2)
• Industrial HMI display
• Tri-color status indicator

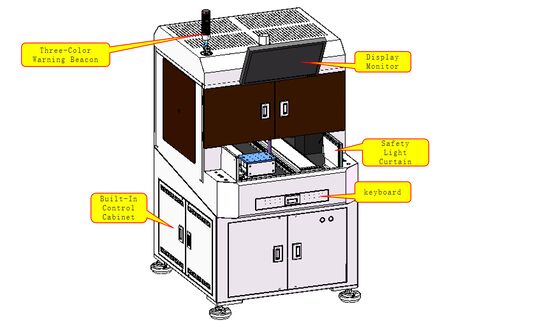

• Integrated electrical control cabinet
• Safety light curtain

Typical Applications

• PCB and electronic component soldering
• Connector and terminal soldering
• Precision electronic assembly lines
• Automotive electronics
• Consumer electronics manufacturing

Why Choose This Machine

The dual X-axis dual Y-axis structure is specifically engineered to eliminate waiting time between vision inspection and soldering. By allowing parallel operations, the system delivers higher output per square meter compared to conventional single-axis soldering machines—making it a cost-effective solution for manufacturers focused on productivity and quality. For more details, please contact Xiamen Large Automation Technology Co,.Ltd.
