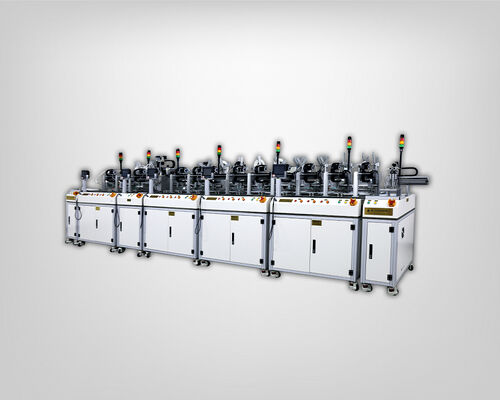

Multi-Station Back Adhesive Labeling Automatic Production Line High-Speed Automatic Labeling Production Line

Multi-Station Back Adhesive Labeling Automatic Production Line

Equipment Description

This production line is designed for multi-station automatic back adhesive labeling.

It integrates multiple processes such as automatic loading, positioning, adhesive application, labeling, inspection, and unloading into a continuous inline system.

The line supports stable, high-efficiency operation and is suitable for mass production of electronic products requiring back-side adhesive attachment.

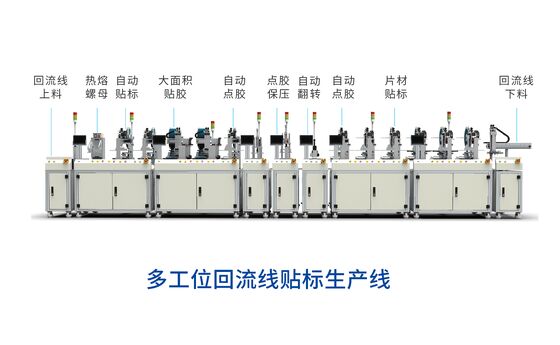

Process Configuration

1. Automatic loading

2. Positioning and alignment

3. Back adhesive dispensing / labeling

4. Pressing and bonding

5. Automatic inspection

6. Automatic unloading

All stations operate inline to ensure consistent product quality and high throughput.

Application Example

Labeled Product Application

Typical application includes back adhesive attachment on electronic device housings, such as:

1. Mobile phone back covers

2. Smart terminal housings

3. Consumer electronics enclosures

Adhesive labels are applied to designated functional areas to support assembly, insulation, cushioning, or identification requirements.

Key Features

1. Multi-station inline structure for high production capacity

2. High positioning accuracy for complex back-side layouts

3. Compatible with various adhesive materials

4. Automated operation reduces manual handling

5. Stable and repeatable labeling quality

 Control & Automation

1. Centralized PLC control system

2. Touch panel HMI operation

3. Automatic process sequencing

4. Fault alarm and status indication

 Safety & Design

1. Fully enclosed safety structure

2. Emergency stop and safety interlock protection

3. Designed for continuous industrial operation

FAQ – Multi-Station Back Adhesive Labeling Automatic Production Line

1. What is a Multi-Station Back Adhesive Labeling Automatic Production Line?

The Multi-Station Back Adhesive Labeling Automatic Production Line is an automated system designed to apply adhesive labels to the back side of electronic components, modules, or product housings. The multi-station configuration allows multiple labeling processes to be completed in a single production line, improving efficiency and labeling accuracy.

2. What are the advantages of a multi-station labeling production line?

A multi-station design allows different labeling tasks to be performed simultaneously or sequentially within one system. This improves production throughput, labeling consistency, and automation efficiency, while reducing manual operations and production errors.

3. What industries commonly use back adhesive labeling production lines?

This type of labeling system is widely used in consumer electronics manufacturing, battery module assembly, display panel production, automotive electronics, and smart device manufacturing, where accurate label placement and traceability are required.

4. How does automated labeling improve production quality?

Automated labeling machines use precision positioning, vision inspection systems, and stable motion control to ensure consistent label placement, reduce misalignment, and improve product appearance and quality.

5. Can the multi-station labeling line support different label sizes and product types?

Yes. The system can be configured to support various label sizes, product dimensions, and labeling positions. Adjustable parameters and programmable control systems allow flexible adaptation for different production requirements.

6. Can this labeling production line be integrated into existing manufacturing lines?

Yes. The Multi-Station Back Adhesive Labeling Automatic Production Line can be integrated into automated manufacturing systems, enabling seamless connection with upstream and downstream processes such as assembly, inspection, and packaging.

 Notes

• Specifications are subject to change without prior notice.

• Product dimensions and station configuration can be customized based on customer requirements.
