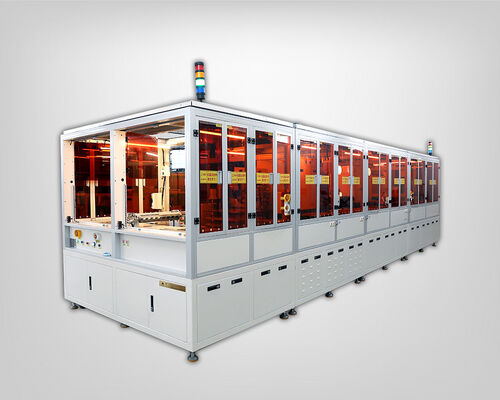

Water-Based Adhesive Full Lamination Automatic Production Line (Screen Lamination + Curing + Vacuum Lamination)

Water-Based Adhesive Full Lamination Automatic Production Line (Screen Lamination + Curing + Vacuum Lamination)

System Overview

This automatic production line is designed for water-based adhesive full lamination, integrating screen lamination, adhesive curing, and vacuum lamination into a single continuous system.

The line supports fully automated operation, ensuring stable product quality, high production efficiency, and consistent process control. It is suitable for mass production requirements in display module and optical component manufacturing.

Process Integration

1.Screen lamination with water-based adhesive

2.Thermal curing and optional UV curing

3.Vacuum lamination process

4.Automatic material transfer between stations

All processes are completed inline without manual intervention, improving yield and production consistency.

Key Features

1.Fully enclosed automatic production line

2.Compatible with water-based adhesive processes

3.Modular station design for flexible configuration

4.High stability for long-term continuous operation

5.Reduced labor input and operating cost

Typical Applications

1.TP + LCM full lamination

2.Display modules

3.Optical components

4.Consumer electronics assemblies

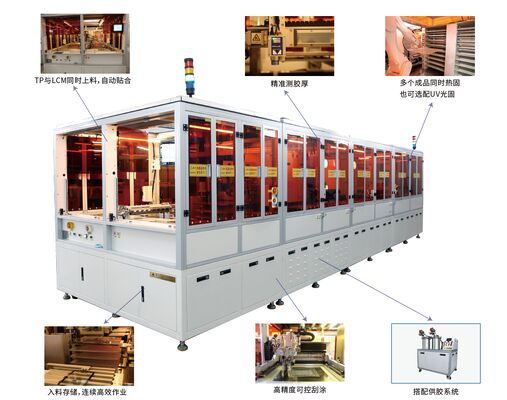

Equipment Configuration (Typical)

1.Automatic loading and unloading system

2.Screen lamination unit

3.Multi-product thermal curing module

4.Optional UV curing module

5.Vacuum lamination unit

6.Conveyor and transfer system

7.Centralized PLC control system

Detailed specifications may vary depending on product size and process requirements.

FAQ – Water-Based Adhesive Full Lamination Automatic Production Line

1. What is a Water-Based Adhesive Full Lamination Automatic Production Line?

The Water-Based Adhesive Full Lamination Automatic Production Line is an advanced automated system that performs screen lamination, UV/thermal curing, and vacuum lamination in one continuous process. It is designed for high-precision lamination of touch screens, display panels, and electronic modules using water-based adhesives.

2. What are the advantages of using water-based adhesive lamination?

Water-based adhesives are environmentally friendly, low in VOC emissions, and safe for sensitive electronic components. The full lamination line ensures uniform bonding, high optical clarity, and reliable adhesion, reducing defects such as bubbles, dust inclusion, or delamination.

3. What industries commonly use this full lamination production line?

The line is widely used in smartphone display manufacturing, tablet and laptop touch panel assembly, OLED/LCD screen production, and wearable device lamination, where precise adhesive application and vacuum lamination are critical.

4. How does the production line improve efficiency compared to manual lamination?


Automated lamination reduces labor costs, minimizes human errors, and provides consistent adhesive distribution, bubble-free lamination, and faster cycle times, ensuring repeatable high-quality production at scale.

5. Can the line handle different sizes and types of display panels?

Yes. The production line is highly flexible and configurable, accommodating a variety of screen sizes, thicknesses, and panel types. Adjustable parameters and programmable process settings allow easy adaptation for different products.

6. What are the key benefits of integrating curing and vacuum lamination in one line?

Combining curing and vacuum lamination ensures perfect adhesive bonding, enhanced structural integrity, and long-term durability. This integration also reduces material handling, improves workflow efficiency, and ensures higher yield rates for precision displays.


Notes

• Specifications are subject to change without prior notice.

• Custom line configurations are available based on customer process needs.
