Automatic Double-Sided Glue Spraying and Inspection Line for Battery Cells Battery Cell Adhesive Spraying Machine Battery Cell Glue Dispensing and Inspection Line

Automatic Double-Sided Glue Spraying and Inspection Line for Battery Cells Battery Cell Adhesive Spraying Machine Battery Cell Glue Dispensing and Inspection Line

Product Features:

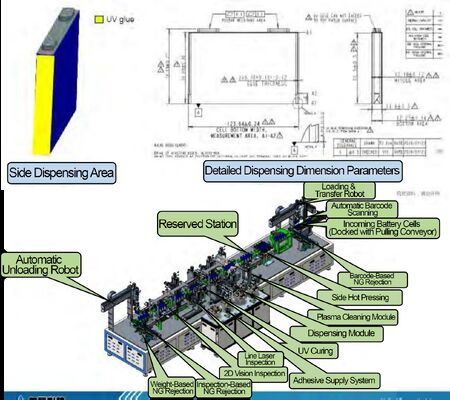

This equipment includes functions such as barcode scanning, automatic clamping, side hot pressing,plasma cleaning, UV glue application, UV curing, dimensional inspection, and automatic unloading.Space is reserved for width measurement and weighing stations.

Utilizing a transfer-based battery cell transfer method, the cells sequentially flow through the hot pressing station, cleaning station, glue application station, curing station, inspection station, and automatic unloading process, completing their respective tasks. The overall layout is reasonable and compact, meeting production efficiency requirements.

Equipped with a glue supply system with defoaming function, the main/negative tank automatically switches during production, achieving non-stop glue supply. Operation is convenient, non-interfering,and highly efficient.

Can be integrated with existing production lines to achieve automatic loading and unloading, while also being compatible with manual loading onto the feeding conveyor belt. All other processes ​are fully automated, requiring no manual operation.

Key Features

• Double-sided precision glue spraying for uniform adhesive application
• Integrated visual inspection system for real-time quality monitoring
• Automated production line design for high efficiency and stable operation
• Accurate positioning and programmable dispensing paths
• Reduced material waste and improved production consistency
• Flexible configuration for different battery cell sizes and production requirements

Typical Applications

• Lithium battery cell manufacturing
• Power battery production for electric vehicles
• Energy storage battery assembly lines
• Battery module and cell protection processes
• Automated adhesive spraying and inspection in battery production

FAQ – Automatic Double-Sided Glue Spraying and Inspection Line for Battery Cells

1. What is an automatic double-sided glue spraying line used for in battery manufacturing?

An automatic double-sided glue spraying line is used to apply adhesive evenly to both sides of battery cells during the manufacturing process, ensuring proper bonding, insulation, and structural stability.

2. Why is double-sided adhesive spraying important for battery cells?

Double-sided adhesive spraying ensures balanced bonding, improved structural integrity, and reliable protection for battery cells, which is essential for maintaining safety and performance in battery modules.

3. How does the inspection system improve production quality?

The integrated inspection system uses vision technology to detect defects such as uneven adhesive distribution, missing glue, or positioning errors, allowing manufacturers to maintain consistent product quality.

4. Can the production line support different battery cell sizes?

Yes. The equipment can be customized to accommodate various battery cell sizes and production specifications, making it suitable for different battery manufacturing requirements.

5. What industries benefit from automated glue spraying and inspection lines?

This production line is widely used in new energy battery manufacturing, electric vehicle battery production, energy storage systems, and advanced electronics manufacturing.

6. What are the advantages of automated adhesive spraying compared to manual processes?

Automated systems provide higher precision, improved production efficiency, reduced material waste, and more consistent adhesive application, which significantly improves the reliability of battery cell production.
