1. Equipment Description

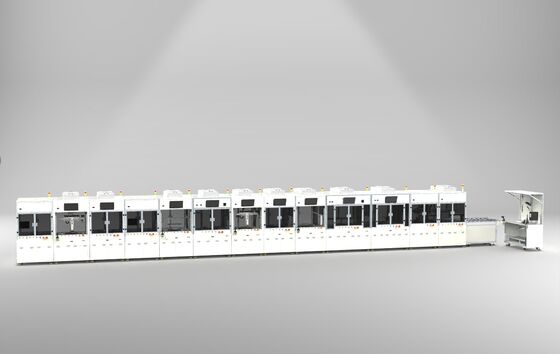

This production line is designed for the assembly and testing of automotive electronic control units (ECUs).

The line can be customized according to product requirements and supports fully automated assembly of ECU sub-components, including upper and lower housing assembly, dispensing, screw fastening, and other processes.

To improve production efficiency and assembly quality, the line integrates cleaning, assembly, and online AOI visual inspection processes.
It supports inline testing of ECU products during production, enabling real-time quality control and improving overall automation and production efficiency.

Manual intervention is mainly limited to loading and unloading operations, while the rest of the processes are completed automatically, ensuring stable and repeatable production performance.

Each station is equipped with a dedicated pneumatic positioning fixture, ensuring accurate positioning and consistent operation at every process step.

2. Key Features

• Designed for automotive-grade ECU assembly and testing
• Modular and customizable line configuration
• Integrated dispensing, fastening, inspection, and testing processes
• Online AOI visual inspection for quality assurance
• High automation level with minimal manual operation
• Stable operation suitable for continuous industrial production

3. Process Configuration

• Automatic loading
• Component assembly (upper/lower housing)
• Adhesive dispensing
• Screw fastening
• Cleaning process
• AOI visual inspection
• Functional testing
• Automatic unloading

4. Control & Automation

• Centralized PLC control system
• HMI touch panel operation
• Automatic process sequencing and interlock control
• Online data monitoring and alarm management

5. Safety & Design

• Fully enclosed safety structure
• Emergency stop and safety interlock system
• Designed in accordance with industrial safety standards

6.FAQ – Automotive Electronic Control Unit (ECU) Assembly and Testing Production Line

A. What is an Automotive ECU Assembly and Testing Production Line?

An Automotive Electronic Control Unit (ECU) Assembly and Testing Production Line is an automated manufacturing system designed to assemble, inspect, and test automotive ECUs. The line integrates processes such as component assembly, functional testing, quality inspection, and data verification to ensure reliable ECU performance.

B. What are the advantages of an automated ECU assembly line?

Automated ECU production lines improve manufacturing efficiency, assembly accuracy, and product consistency. They reduce manual errors, enable real-time quality monitoring, and support high-volume automotive electronics production.

C. What testing processes are included in an ECU testing production line?

An ECU testing line typically includes functional testing, communication testing, electrical performance verification, and reliability inspection to ensure each control unit meets automotive industry standards before delivery.

D. What types of ECUs can be assembled on this production line?

The production line can support various automotive ECUs, including engine control units, body control modules, battery management systems (BMS), ADAS control units, and powertrain electronic modules.

E. Can the ECU assembly and testing line be customized for different automotive manufacturers?

Yes. The system can be customized according to different ECU designs, assembly processes, testing requirements, and production capacities, ensuring compatibility with specific automotive manufacturing needs.

F. Which industries benefit from ECU automated assembly and testing solutions?

This production line is widely used in automotive electronics manufacturing, electric vehicle production, automotive component suppliers, and intelligent vehicle system development, where high reliability and precision are required.

7. Notes

• Specifications are subject to change without prior notice.
• Line configuration and station layout can be customized based on customer product and process requirements.
