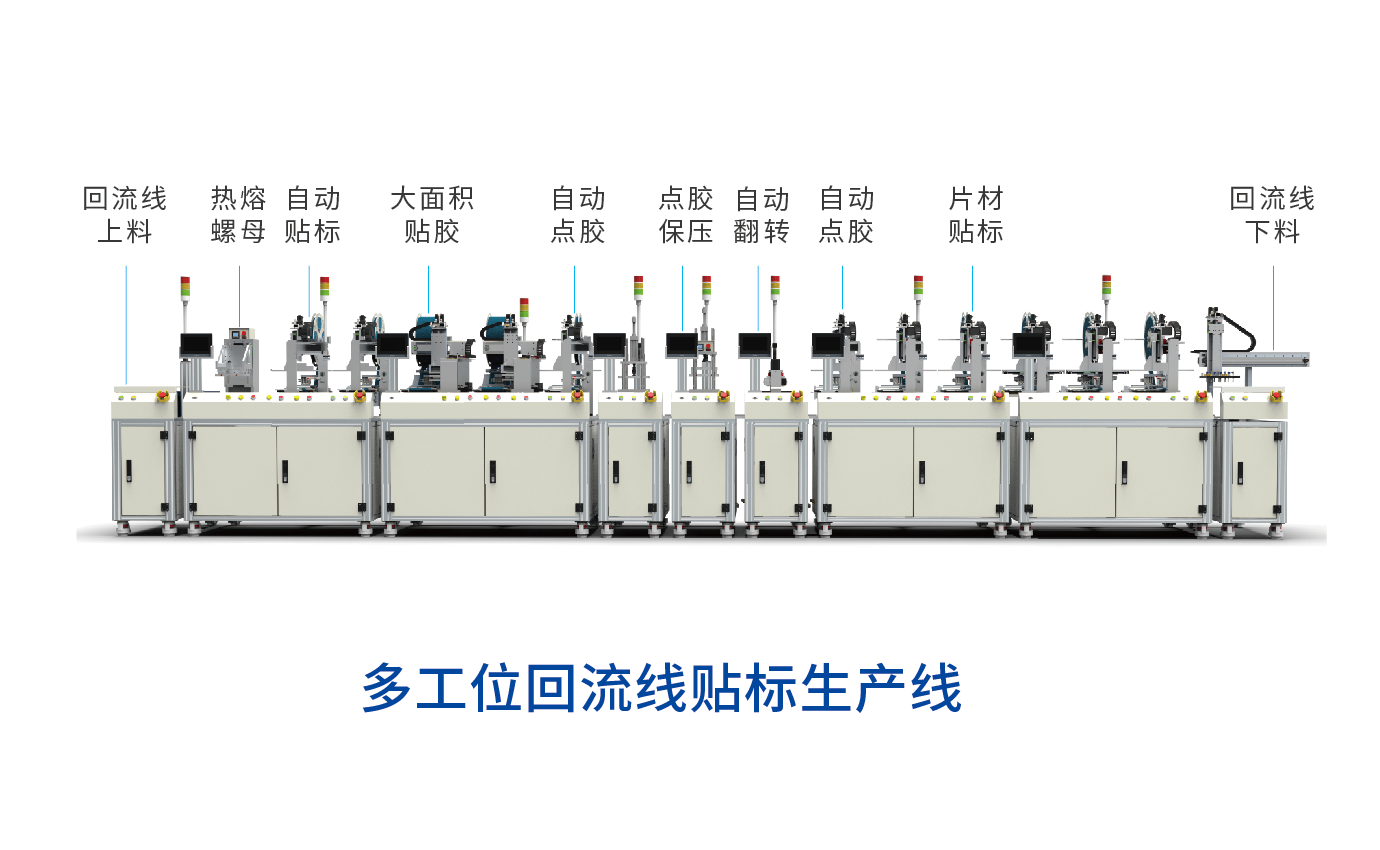

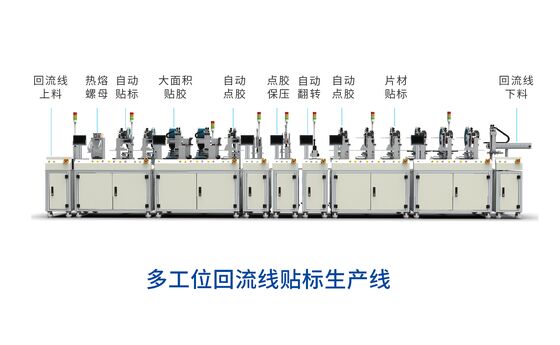

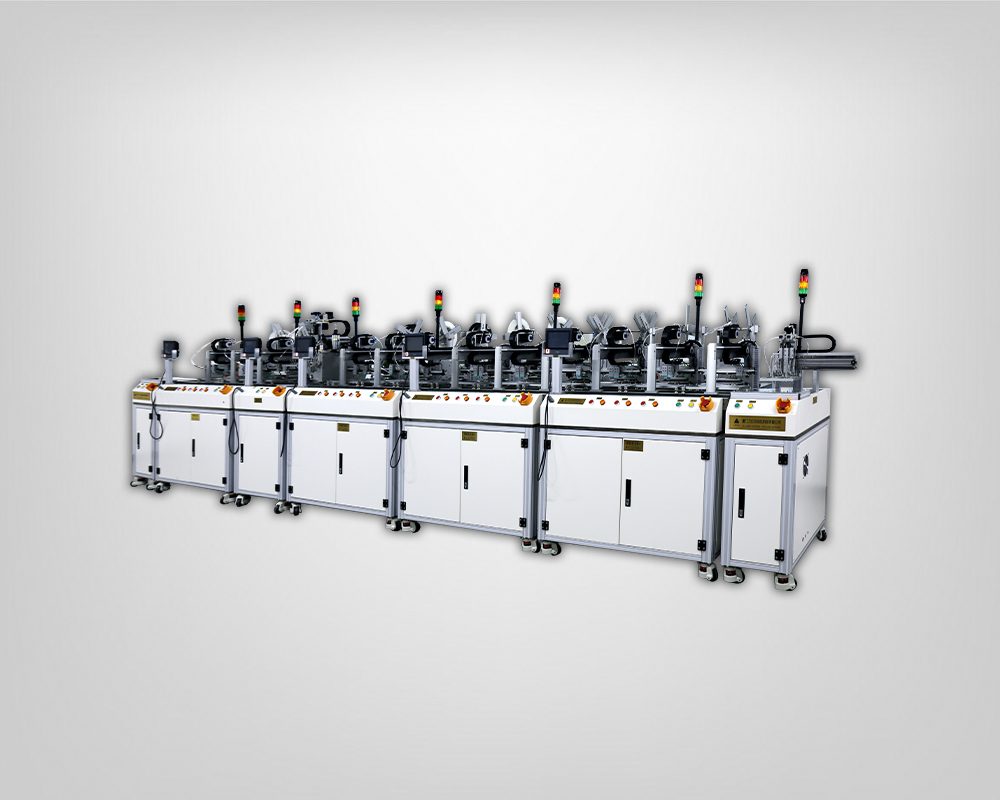

Multi-Station Back Adhesive Labeling Automatic Production Line

1
MOQ
Multi-Station Back Adhesive Labeling Automatic Production Line
Features Gallery Product Description Request A Quote
Features
Specifications
Production Mode: Fully Automatic Inline Production
Number Of Stations: Multi-station Configuration
Applicable Products: Electronic Device Housings / Back Covers
Label Length Range: 2 – 130 Mm
Label Width Range: 2 – 130 Mm
Maximum Product Size: 160 × 95 Mm
Minimum Product Size: 90 × 70 Mm
Labeling Accuracy: ±0.2 Mm
Production Capacity: Up To 1200 Pcs/hour
Control System: PLC + HMI
Power Supply: AC 220 V / 50 Hz
Air Supply Requirement: 0.4 – 0.6 MPa
Basic Infomation
Place of Origin: China
Brand Name: Large Auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description
1. Equipment Description
This production line is designed for multi-station automatic back adhesive labeling.
It integrates multiple processes such as automatic loading, positioning, adhesive application, labeling, inspection, and unloading into a continuous inline system.
The line supports stable, high-efficiency operation and is suitable for mass production of electronic products requiring back-side adhesive attachment.
2. Process Configuration
  • Automatic loading
  • Positioning and alignment
  • Back adhesive dispensing / labeling
  • Pressing and bonding
  • Automatic inspection
  • Automatic unloading
All stations operate inline to ensure consistent product quality and high throughput.
3. Application Example
Labeled Product Application
Typical application includes back adhesive attachment on electronic device housings, such as:
  • Mobile phone back covers
  • Smart terminal housings
  • Consumer electronics enclosures
Adhesive labels are applied to designated functional areas to support assembly, insulation, cushioning, or identification requirements.
4. Key Features
  • Multi-station inline structure for high production capacity
  • High positioning accuracy for complex back-side layouts
  • Compatible with various adhesive materials
  • Automated operation reduces manual handling
  • Stable and repeatable labeling quality

5. Control & Automation
  • Centralized PLC control system
  • Touch panel HMI operation
  • Automatic process sequencing
  • Fault alarm and status indication
6. Safety & Design
  • Fully enclosed safety structure
  • Emergency stop and safety interlock protection
  • Designed for continuous industrial operation
7. Notes
  • Specifications are subject to change without prior notice.
  • Product dimensions and station configuration can be customized based on customer requirements.
