Features

Specifications

Operating Height: 900 ± 50 Mm

Overall Line Length: Approx. 15,300 Mm

Automatic Assembly Station Dimensions: Approx. W1700 × D1500 × H1900 Mm (per Station)

Automatic Testing Station Dimensions: Approx. W1000 × D1700 × H1900 Mm (per Station)

Cycle Time (Takt Time): 60 S

CMK: ≥ 1.67

Operating Noise Level: ≤ 70 DB

Yield Rate: ≥ 91%

Loading Method: Manual Loading

Power Supply: AC 380 V / 50 Hz

Air Supply Requirement: 0.4 – 0.6 MPa

Basic Infomation

Place of Origin: China

Brand Name: Large Auto

Payment & Shipping Terms

Delivery Time: 8-10 work days

Payment Terms: T/T

Gallery

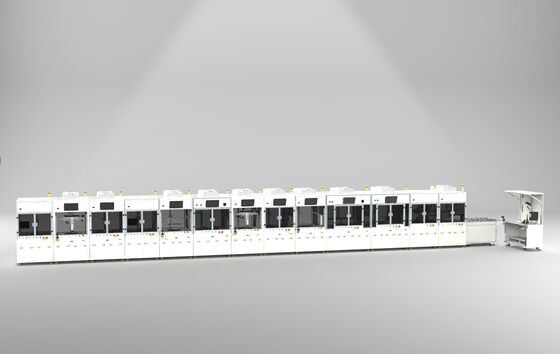

Automotive Electronic Control Unit (ECU) Assembly and Testing Production Line

Product Description

1. Equipment Description

This production line is designed for the assembly and testing of automotive electronic control units (ECUs).
The line can be customized according to product requirements and supports fully automated assembly of ECU sub-components, including upper and lower housing assembly, dispensing, screw fastening, and other processes.

To improve production efficiency and assembly quality, the line integrates cleaning, assembly, and online AOI visual inspection processes.
It supports inline testing of ECU products during production, enabling real-time quality control and improving overall automation and production efficiency.

Manual intervention is mainly limited to loading and unloading operations, while the rest of the processes are completed automatically, ensuring stable and repeatable production performance.

Each station is equipped with a dedicated pneumatic positioning fixture, ensuring accurate positioning and consistent operation at every process step.

2. Key Features

Designed for automotive-grade ECU assembly and testing
Modular and customizable line configuration
Integrated dispensing, fastening, inspection, and testing processes
Online AOI visual inspection for quality assurance
High automation level with minimal manual operation
Stable operation suitable for continuous industrial production

3. Process Configuration

Automatic loading
Component assembly (upper/lower housing)
Adhesive dispensing
Screw fastening
Cleaning process
AOI visual inspection
Functional testing
Automatic unloading

4. Control & Automation

Centralized PLC control system
HMI touch panel operation
Automatic process sequencing and interlock control
Online data monitoring and alarm management

5. Safety & Design

Fully enclosed safety structure
Emergency stop and safety interlock system
Designed in accordance with industrial safety standards

6. Notes

Specifications are subject to change without prior notice.
Line configuration and station layout can be customized based on customer product and process requirements.
