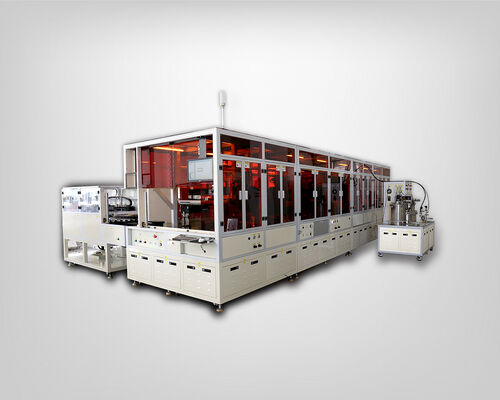

Water-Based Adhesive Full Lamination Automatic Production Line (Screen Lamination · Curing · Atmospheric Lamination)

1
MOQ
Water-Based Adhesive Full Lamination Automatic Production Line (Screen Lamination · Curing · Atmospheric Lamination)
Features Gallery Product Description Request A Quote
Features
Specifications
Production Mode: Fully Automatic Inline Operation
Operating Height: 880 ± 20 Mm
Overall Dimensions (L × W × H): 6000 × 4000 × 2000 Mm
Applicable Products: TP + Open Cell / LCM
Product Size Range: 6 – 7 Inches
Glass Size (TP + Open Cell): 800 × 350 Mm (single Piece)
Glass Size (LCM): 250 × 100 Mm (single Piece)
Yield Rate: ≥ 99%
Lamination Method: Atmospheric-pressure Lamination
Adhesive Thickness Range: 0.2 – 1.5 Mm
Cycle Time (Takt Time): ≤ 120 S
Operators Required: 2 – 3
Power Supply: 100 KW
Thickness Uniformity: ±20%
Basic Infomation
Place of Origin: China
Brand Name: Large-auto
Payment & Shipping Terms
Delivery Time: 8-10 work days
Payment Terms: T/T
Product Description
1. Equipment Description
This automatic production line is designed for water-based adhesive full lamination processes.
It integrates screen lamination, adhesive curing, and atmospheric-pressure lamination into a continuous inline system.
The line operates fully automatically and is suitable for stable, high-volume production of display modules and related assemblies.
2. Application Scope
  • Adhesive Type: Water-based adhesive
  • Applicable Products: TP + Open Cell, LCM
  • Typical Applications:
    • Display module lamination
    • Optical component assembly
    • Consumer electronics manufacturing
3. Process Configuration
  1. Screen lamination
  2. Adhesive curing
  3. Atmospheric-pressure lamination
  4. Automatic transfer between stations
All processes are completed inline without manual intervention.

4. Control & Automation
  • Centralized PLC control system
  • HMI touch panel operation
  • Automatic process sequencing and interlock control
  • Alarm and fault indication functions
5. Safety & Design
  • Fully enclosed safety structure
  • Emergency stop and safety interlock design
  • Industrial-grade components for continuous operation
6. Customization Options (On Request)
  • Product size range customization
  • Process station configuration adjustment
  • UV curing module (optional)
  • MES / factory communication interface
7. Notes
  • Specifications are subject to change without prior notice.
  • Final configuration depends on customer product and process requirements.
